simalube multipoint – the automatic multipoint lubrication system for small quantities of lubricant

simalube – for reliable and cost-effective lubrication

Images
Description

With the simalube multipoint lubrication system 5 individual lubrication points can reliably be serviced. The lubricant quantity per chamber is 8 ml which can be dispensed within a period from 1 to 12 months. By means of an intelligent snapping system, the empty lubricator can be removed from the fitting connection and easily be replaced by a new lubricator. The simalube multipoint dispensers are available filled with various lubricants (grease or oil). The operating time can be adjusted at any time and be changed according to the requirements.

  • 5 x 8 ml lubricant (grease or oil)

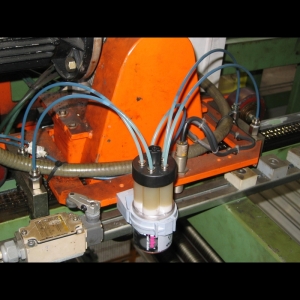

  • Appropriate for the lubrication of linear slides
  • Runtime from 1 to 12 months continuously adjustable
  • Snapping system allows easy mounting to fitting connection
  • Short initial periods
  • Fast coupling to tubes with Ø 4/2.7 mm

Calculation Pro
An online calculation program is available at www.simatec.com ( simalube/calculation pro).

This tool calculates the right setting for the simalube lubricator if you enter the precise
operating parameters.

Apps, iOS and Android platform, are also available.
Please refer to following link and click :
http://simatec.com/calc_pro/index.html?lang=en

Video

Download
Description Download Link
simalube 小保姆 用户手冊
simalube user manual (English)
