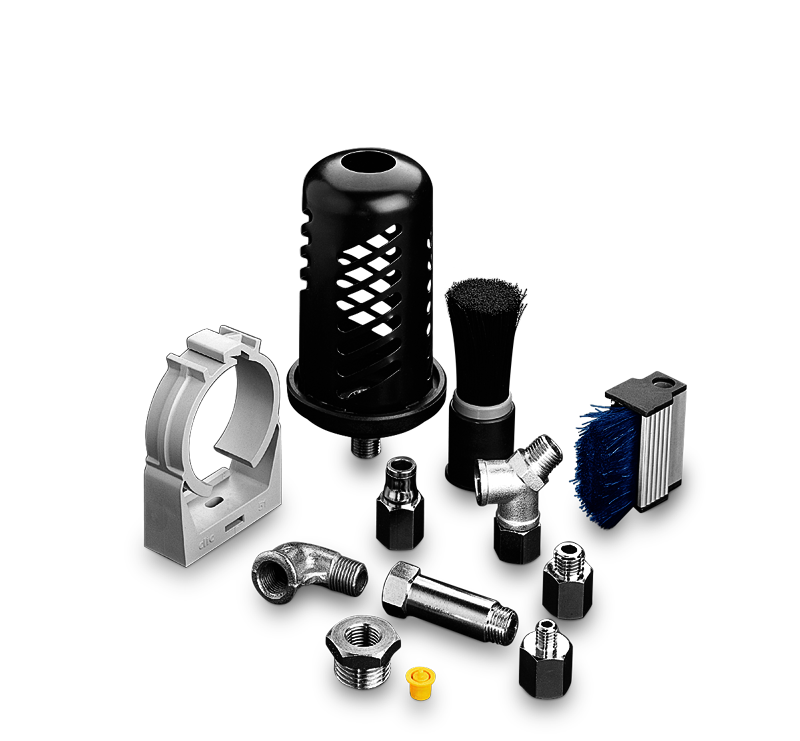

simalube accessories
A comprehensive, practice-oriented range of accessories enables the simalube lubricators to be applied without any problems. The accessories program is based on a modular system. This means that the various parts are compatible and can be combined in any way to solve any lubrication problem.
Connections
Bent connection 45°
| D | R 1/4″ |
| No. | 290.1001 |
Bent connection 90°
| D | R 1/4″ |
| No. | 290.1002 |
Rotary elbow , female (for hose Ø8 mm)
| D | R 1/4″ |
| No. | 290.1003 |
Bent connection 90°, swiveling
| D | R 1/4″ |
| No. | 290.1004 |
90° connection with thread incl. 2 nuts (only for oil)
| L | 70 |
| No. | 290.1005 |
Rotary elbow , male (for hose d=8 mm)
| D | G 1/8″ | G 1/4″ |
| No. | 290.1007 | 290.1008 |
Connection straight
| D | G 3/8″ | G 1/2″ |
| No. | 290.1010 | 290.1011 |
Fixation nipple
| L | 25 |
| No. | 290.1015 |
Reducing nipple
| D | G 1/8″ | G 1/4″ | M6 | M8 | M8x1 |
| No. | 290.1020 | 290.1021 | 290.1022 | 290.1023 | 290.1.24 |
| D | M10 | M10x1 | M12 | M12x1,5 | UNF 1/4″ |
| No. | 290.1025 | 290.1026 | 290.1027 | 290.1028 | 290.1121 |
Reducing nipple M6, heavy-duty type
| D | M6 |
| No. | 290.1500 |
Reducing nipple UNF 1/4″, heavy-duty type
| D | M6 |
| No. | 290.1501 |
Extension
| L | 10 | 35 | 50 |
| No. | 290.1021 | 290.1040 | 290.1041 |
Screwed connection (25 mm, 1 nut / 60 mm, 2 nuts)
| L | 25 | 60 |
| No. | 290.1045 | 290.1046 |
Y-Manifold (contains reducing nipple 290-10210)
| D | R 1/4″ |
| No. | 290.1050 |
Quick connection coupling (for hose d=8 mm)
| D | R 1/4″ |
| No. | 290.1060 |
Quick connection coupling (for hose d=8 mm)
| D | G 1/8″ | G 1/4″ | G 3/8″ |
| No. | 290.1070 | 290.1071 | 290.1072 |
4-fold adapter
| D | G 1/2″ | G 1/4″ |
| No. | 290.4100 | 290.4101 |
2-fold adapter
| D | G 1/2″ | G 1/4″ |
| No. | 290.4102 | 290.4103 |
Lubricator accessories and miscellaneous

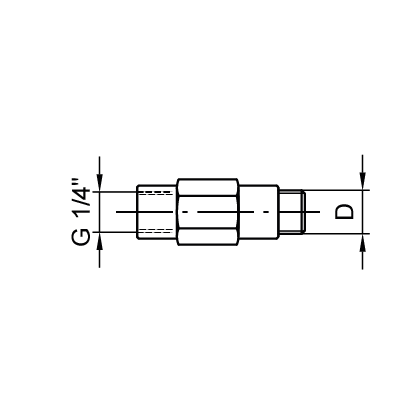

Non return valve (metal)
| D | G 1/8″ | G 1/4″ |
| No. | 290.2020 | 290.2021 |
Connector nipple (for cleaning and filling of grease lines)
| D | R 1/4″ |
| No. | 290.3011 |

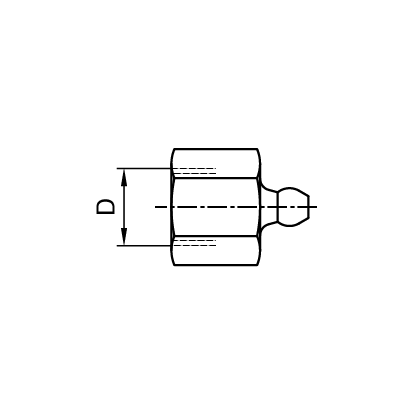

Refill nipple (for refilling of simalube)
| D | R 1/4″ |
| No. | 290.3012 |

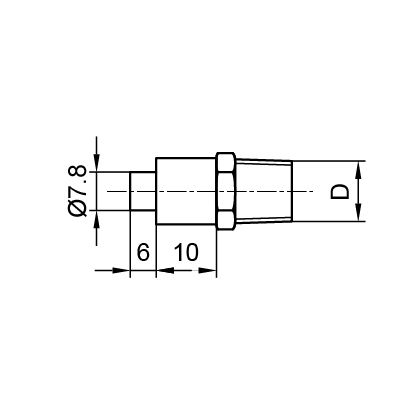

Connector nipple to grease gun filler for filling lubricator
| D | R 1/4″ | R 3/8″ |
| No. | 290.3013 | 290.3014 |
REFILL Cartridge (gas generator)
| 15 ml | 30 ml | 60 ml | 125 ml | 250 ml | |
| No. | 220.5002 | 220.5004 | 220.5006 | 220.5008 | 220.5010 |

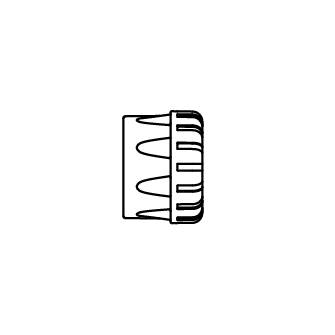

Closing nipple (plastic)
| No. | 290.5050 |

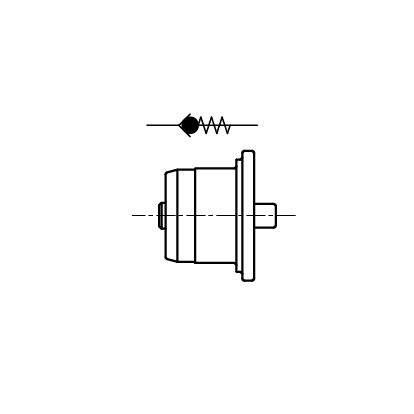

Non return valve (metal)
| No. | 290.5060 |
Connector nipple (for cleaning and filling of grease lines)
| No. | 290.5080 |
Safety accessories
Mounting support consisting of flange,connection straight R 1/4″ nut
| No. | 290.2080 |
Protection cover to mounting support
| 30-125 ml | 250 ml | |
| L | 105 | 195 |
| No. | 290.2081 | 290.2085 |
Protection cap
| 30-125 ml | 250 ml | |
| L | 15 | |
| No. | 290.2075 | 290.2078 |
Sun protection cover
| 30-125 ml | 250 ml | |
| No. | 115 | 205 |
| No. | 290.2076 | 290.2077 |
Brushes
Round brush
| D x L | 25 x 45 mm |
| No. | 290.2034 |

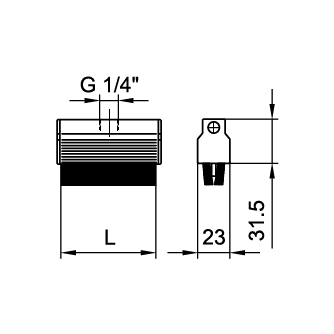

Square brushes
| L | 25 | 40 | 70 | 100 |
| No. | 290.2038 | 290.2035 | 290.2036 | 290.2037 |
Brush with lateral connection
| L | 25 | 40 | 70 | 100 |
| No. | 290.20384 | 290.20354 | 290.20364 | 290.20374 |
Square brushes (for food)
| L | 25 | 40 | 70 | 100 |
| No. | 290.20385 | 290.20355 | 290.20365 | 290.20375 |
Brush with lateral connection (for food)
| L | 40 | 70 | 100 |
| No. | 290.20357 | 290.20367 | 290.20377 |

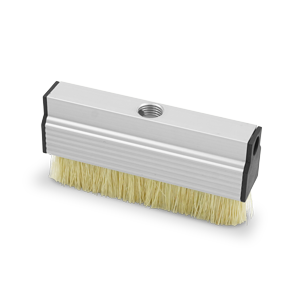

Brush 100 mm for rope lubrication
| L | 100 |
| No. | 290.2055 |
Round brush
| D x L | 25 x 15 mm |
| No. | 290.2041 |
Elevator brush large
| 5-16 mm | 16-32 mm | |
| No. | 290.2039 | 290.2044 |

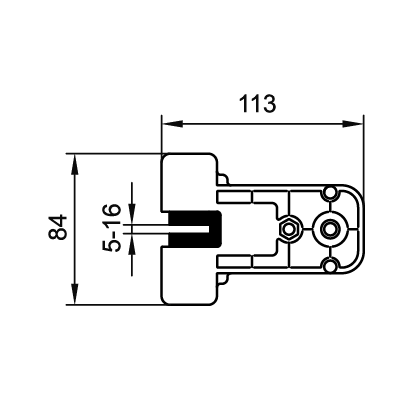

Elevator brush small
| 5-16 mm | |
| No. | 290.2042 |
Guide rail brush
| 40-50 mm | |
| No. | 290.2046 |
Installation accessories

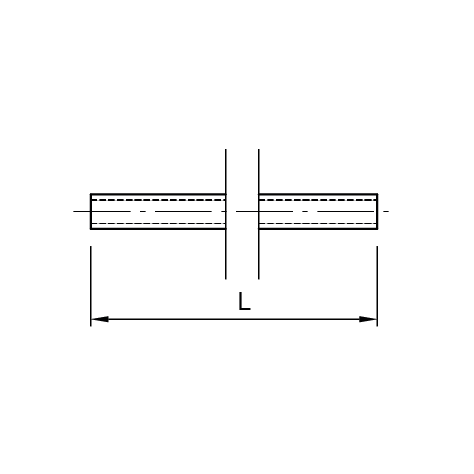

Hose (recommended length to the lubrication point max 0.5 m) d=8/6 mm
| L | per meter |
| No. | 290.2000/…m |
| No. | 290.2002/…m (high temperature) |
| No. | 290.2004/…m (Hose for small bend radius) |

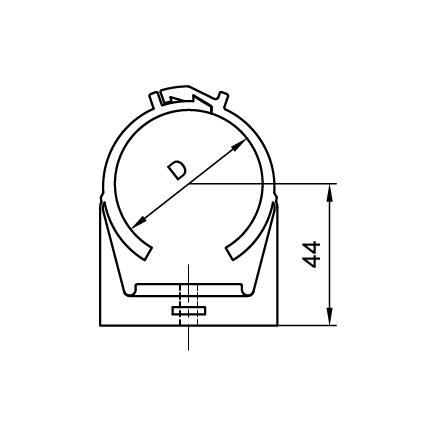

Clamp for simalube
| D | 50 |
| No. | 290.2010 |
Adapter for clamp (60 mm), Plastic
| A | 50 |
| No. | 290.2012 |

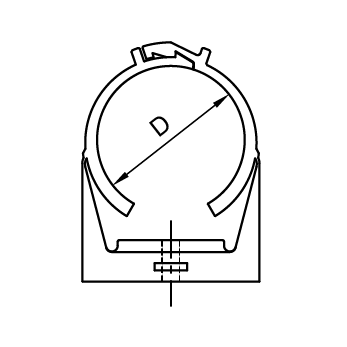

Clamp for round brush
| D | 28 |
| No. | 290.2013 |

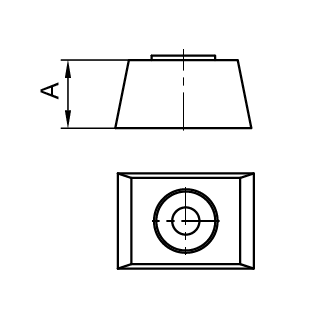

Distance holder to clamp for round brush
| A | 15 |
| No. | 290.2014 |
Clamp for simalube 15
| D | 22 |
| No. | 290.2015 |
Magnetic fixture for clamps
| No. | 290.2019 |
Mounting bracket to mounting support
| L | 75 mm | 240 mm | 390 mm |
| No. | 290.2082 | 290.2083 | 290.2084 |
| 1x | 3x | 5x |
Bracket, universally adjustable
| No. | 290.2800 |

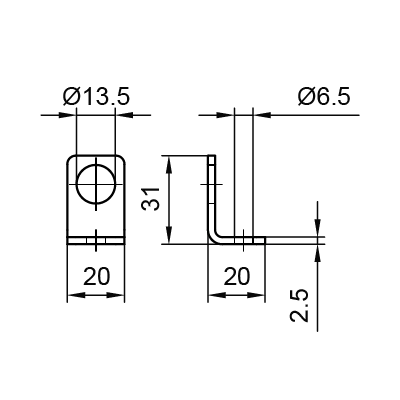

Bracket for simalube 15-60 ml
| No. | 290.2087 |
simalube multipoint installation components

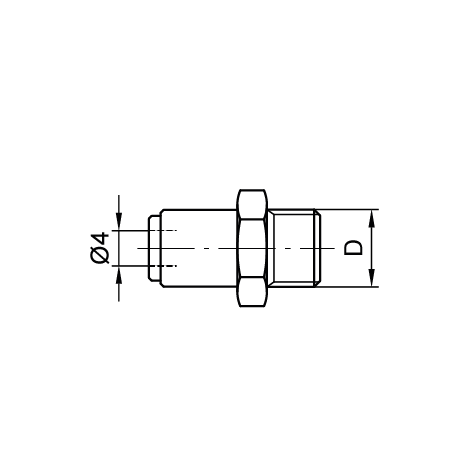

Quick connection coupling for hose Ø 4 mm
| D | R 1/8 | R 1/4 | M5 | M6 |
| No. | 290.1170 | 290.1171 | 290.1172 | 290.1173 |

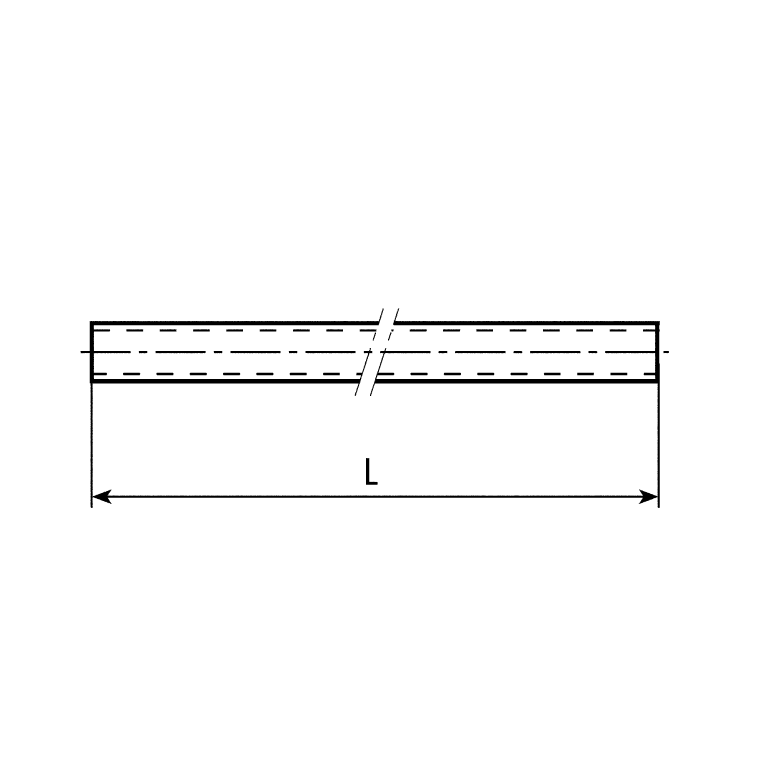

Hose (recommended length to the lubrication point max. 0.5 m) Ø 4 / 2.7 mm
| L | per meter |
| No. | 290.2100/…m |

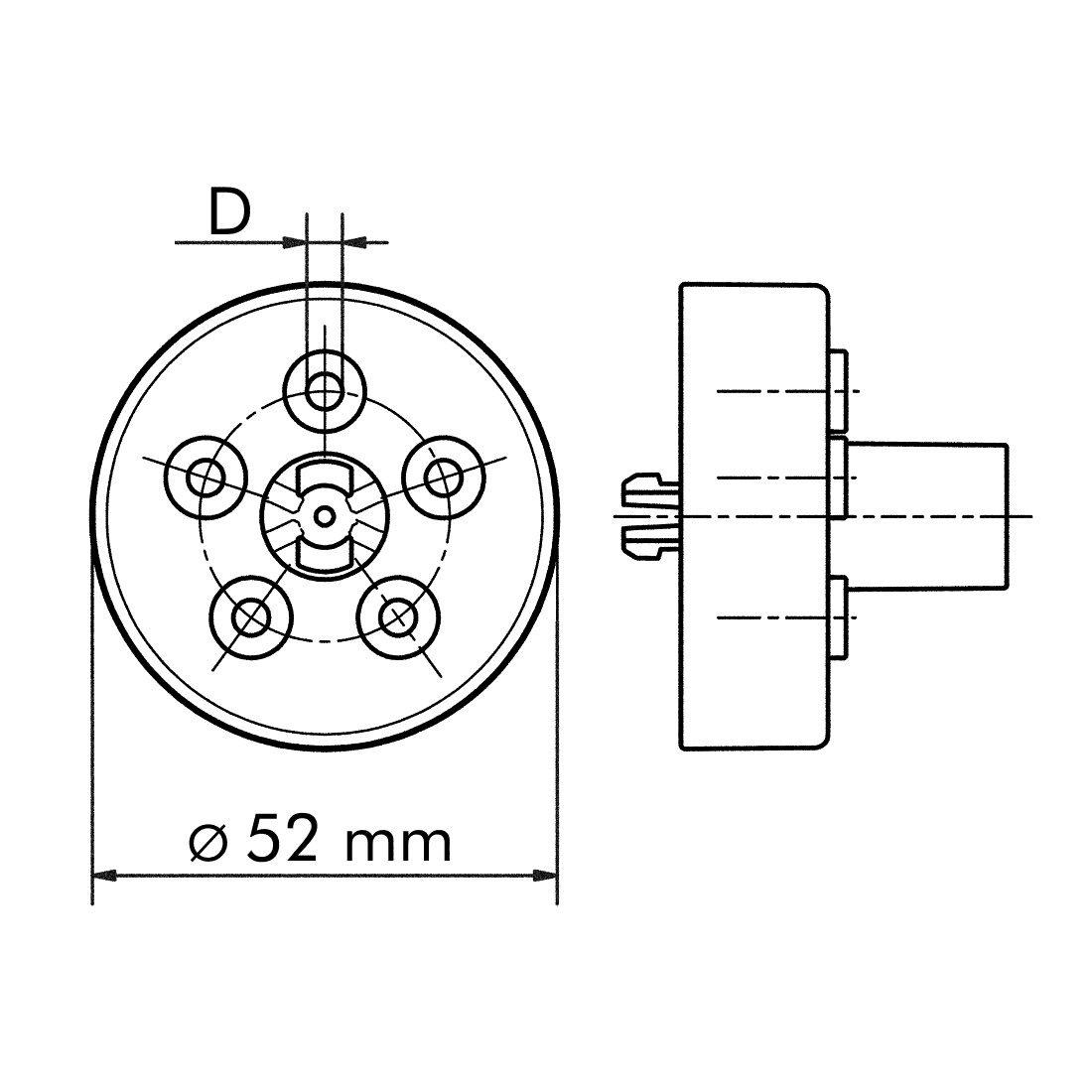

Fitting connection SLM (5 connections Ø 4 mm incl. retaining screws)
| D | 4 |
| No. | 290.2900 |
Grease cartridges and oil bottles for prelubrication
Grease gun (with valve pipe)
| DIN 1283 | |
| No. | 290.3010 |
Grease cartridges (DIN 1284; 400 ml)
| Grease | SL 01 | SL 02 | SL 04 | SL 06 |
| No. | 290.7001 | 290.7002 | 290.7004 | 290.7006 |
| Grease | SL 09 | SL 10 | SL 24 | SL 25 |
| No. | 290.7009 | 290.7010 | 290.7024 | 290.7025 |
Oil bottle 0.5 l
| Chain oil | SL 14 | OF 14 |
| High temperature oil | SL 15 | OF 15 |
| Machine oil | SL 16 | OF 16 |
| Food industry oil | SL 18 | OF 18 |
| Biodegradable chain oil | SL 19 | OF 19 |
simalube IMPULSE connect accessories
simalube IMPULSE connect
| No. | 230.1010 |

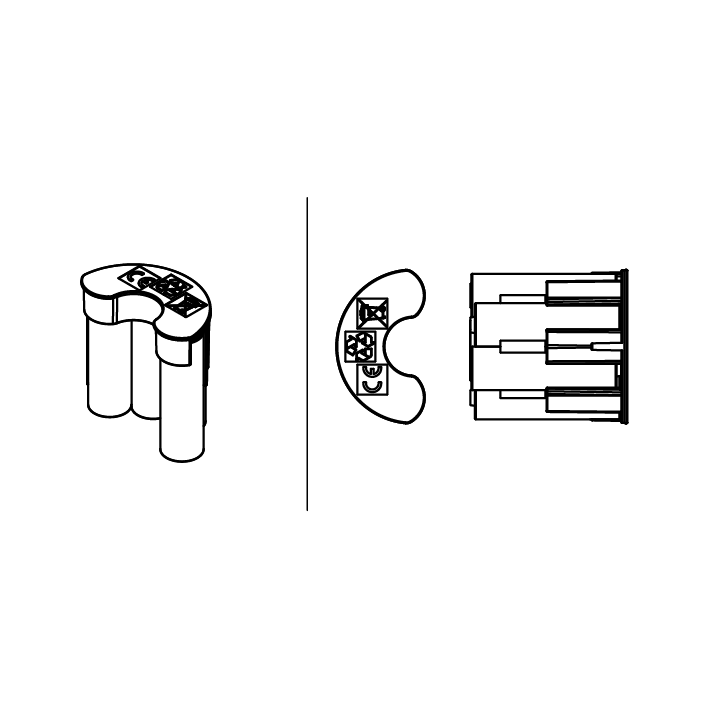

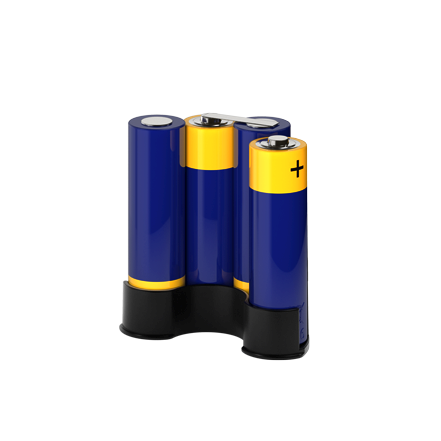

simalube IMPULSE battery pack
| Power | 6V 2,3Ah |
| No. | 230.5000 |
