simatherm IH 045

Heat the most common rolling bearings up to 45 kg

World's first controllable induction heater with an app

World’s first controllable induction heater with an app

The IH 045 is suitable for heating small and medium-sized workpieces up to 45 kg. Due to the external induction coil, the unit works extremely efficiently. The power can be adjusted in eight stages if required.

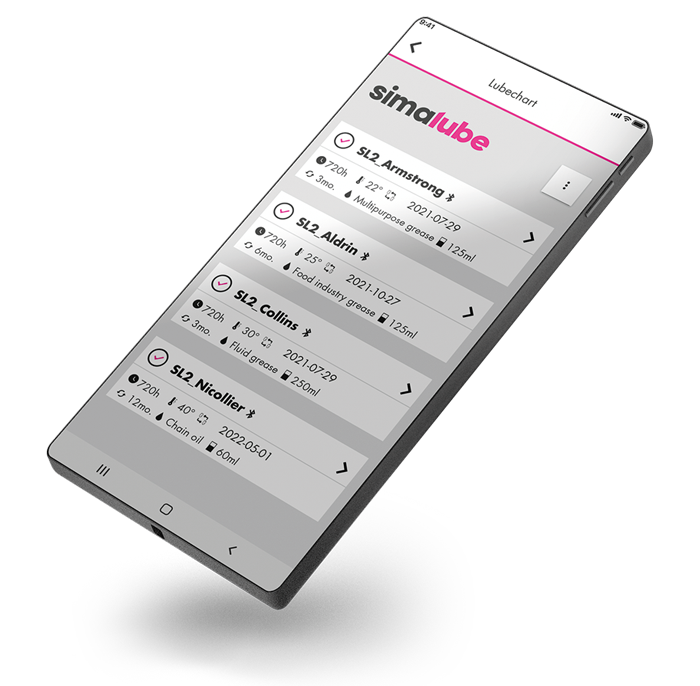

Connectivity with the “simatec World of Maintenance” app

Remote control

For rolling bearings weighing up to 45 kg

For workpieces with an inner diameter of 20 to 310 mm

Available for voltages of 100, 115 and 230 V

8-stage power consumption combined with smaller yokes, allows smaller bearings to be heated safely and quickly with less energy

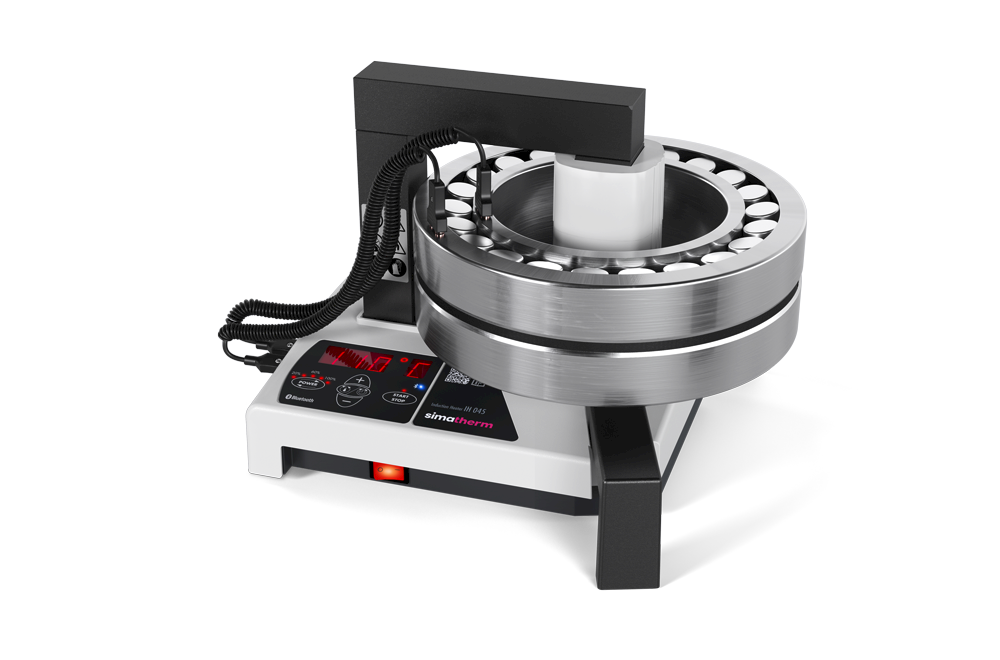

Extendable bearing support arms

Smallest and fastest device in its performance class

Smallest external induction coil

Supplied with three yokes as standard

Particularly compact design – including the yokes only 17 kg in weight

Can heat a 28 kg bearing from 20 °C to 110 °C in 20 minutes, thus saving time and energy

Automatic demagnetization

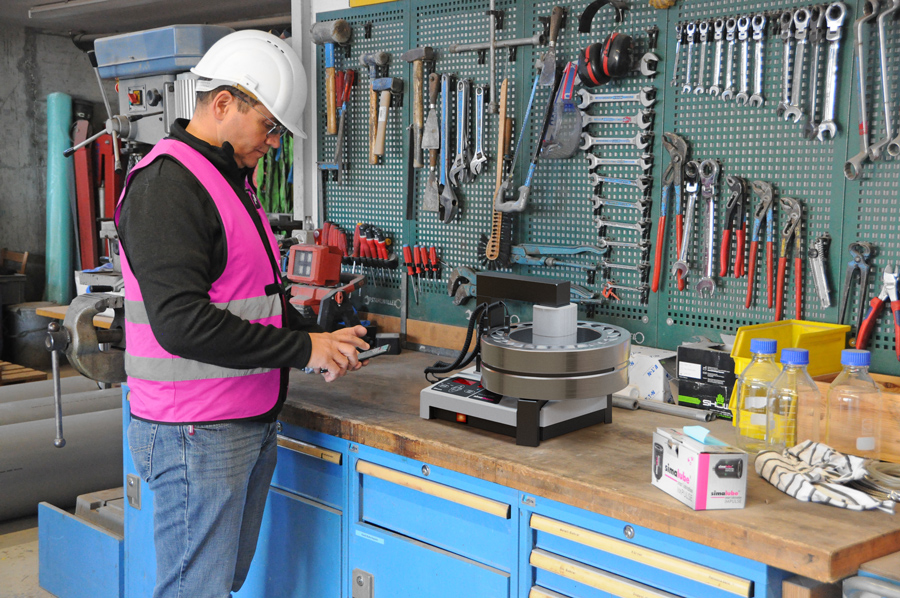

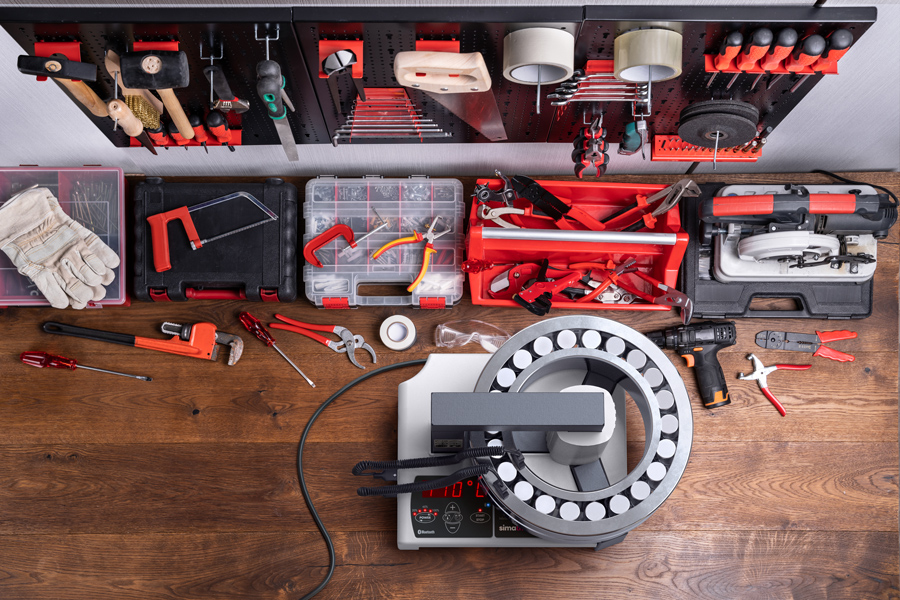

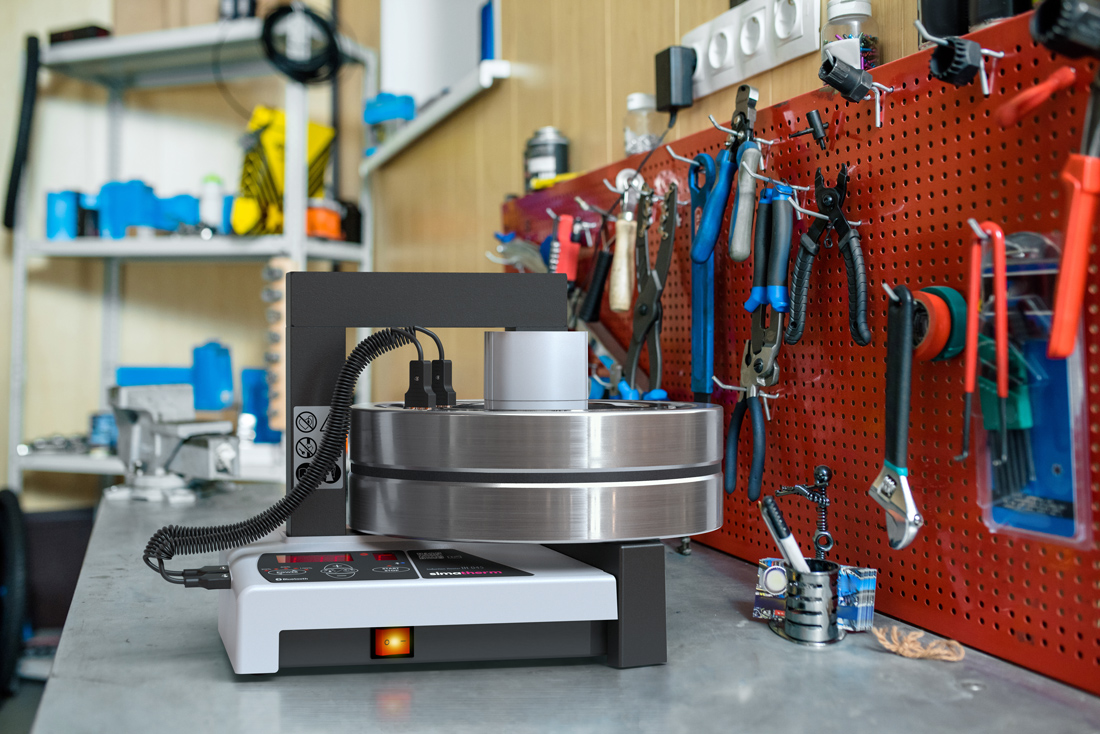

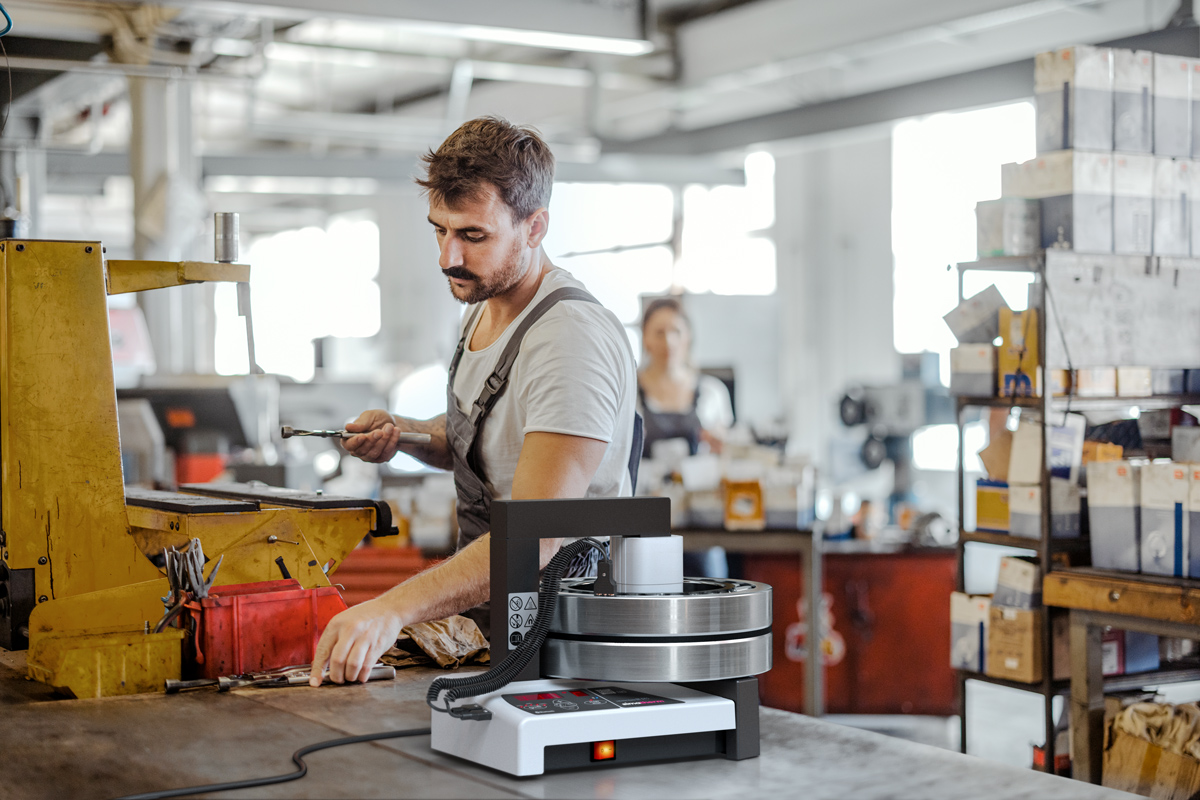

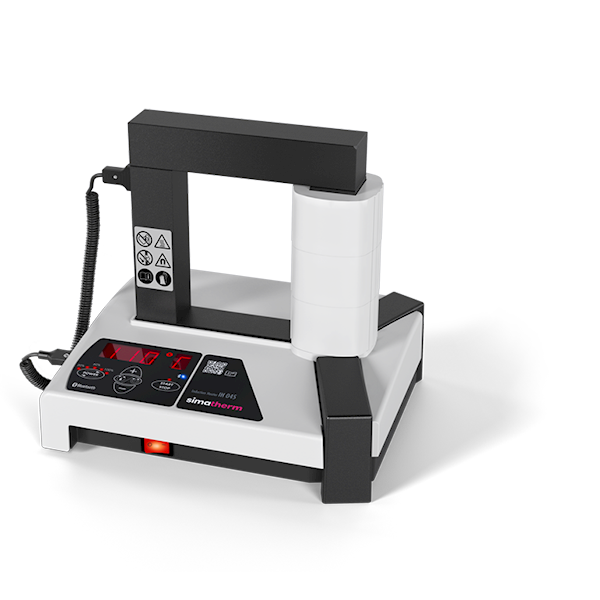

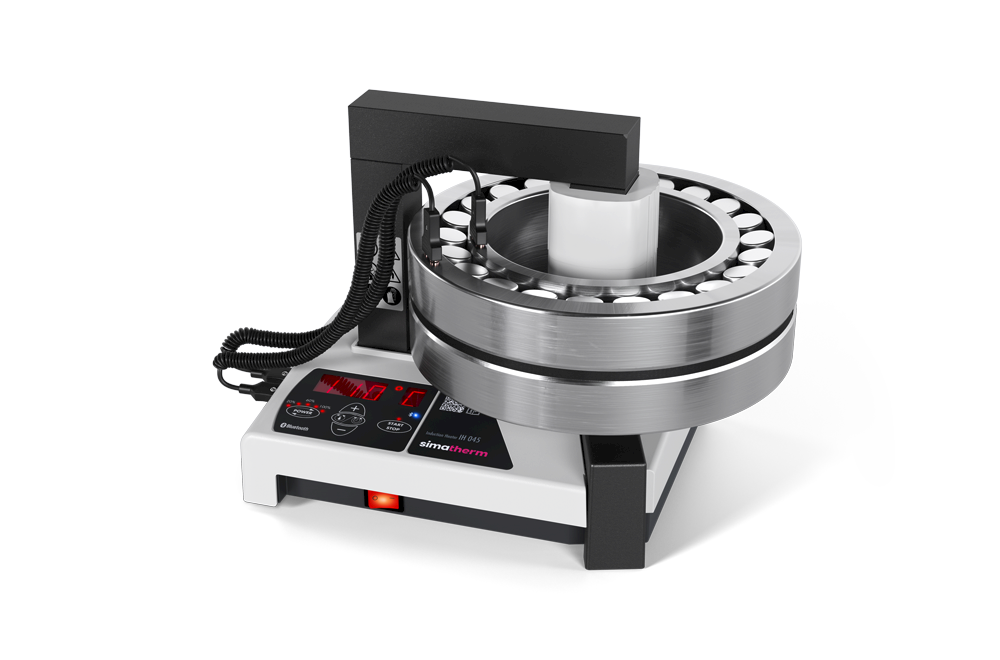

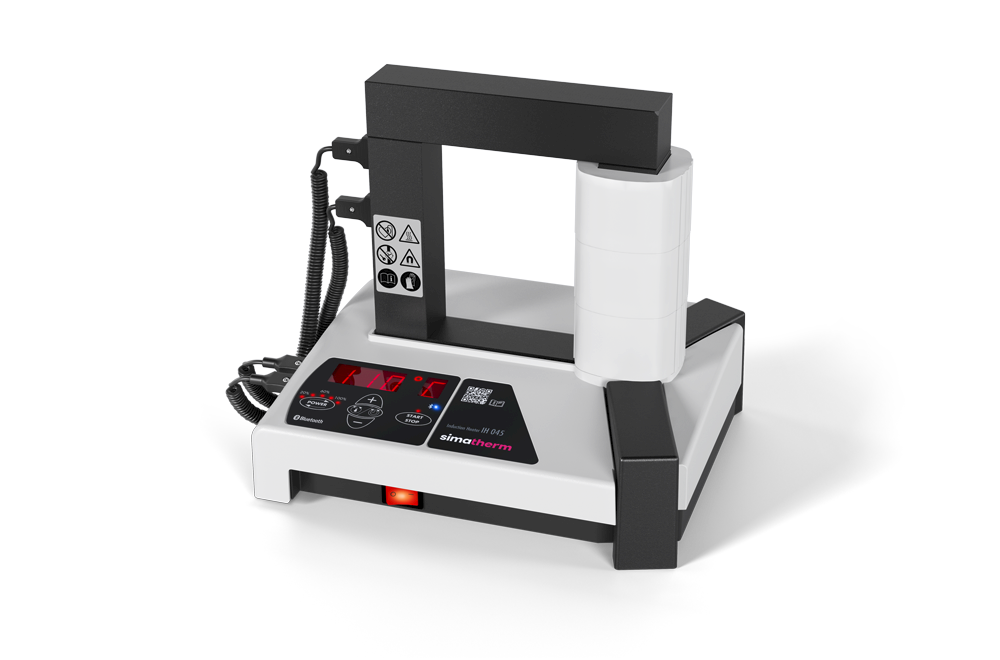

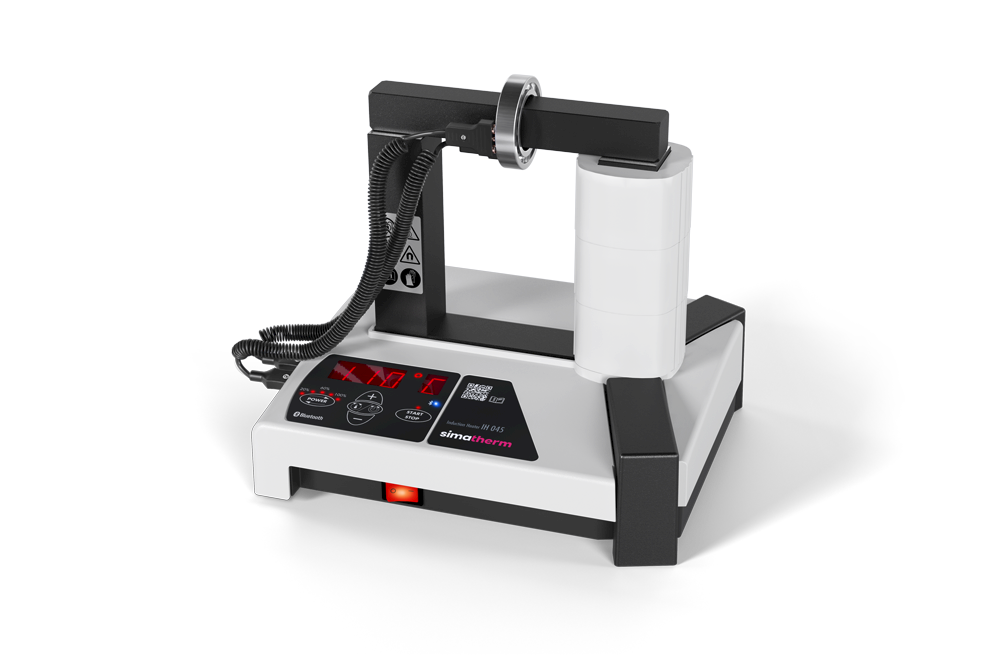

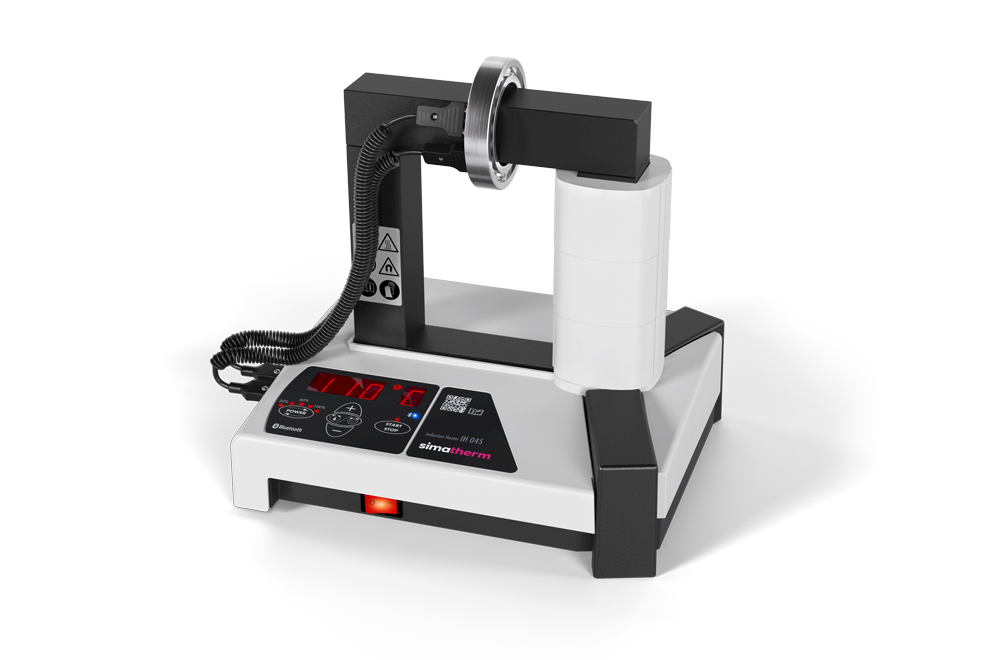

Product images

Scope of delivery

1x simatherm IH 045

1x Quick instruction guide

1x Temperature probe

1x Protective gloves

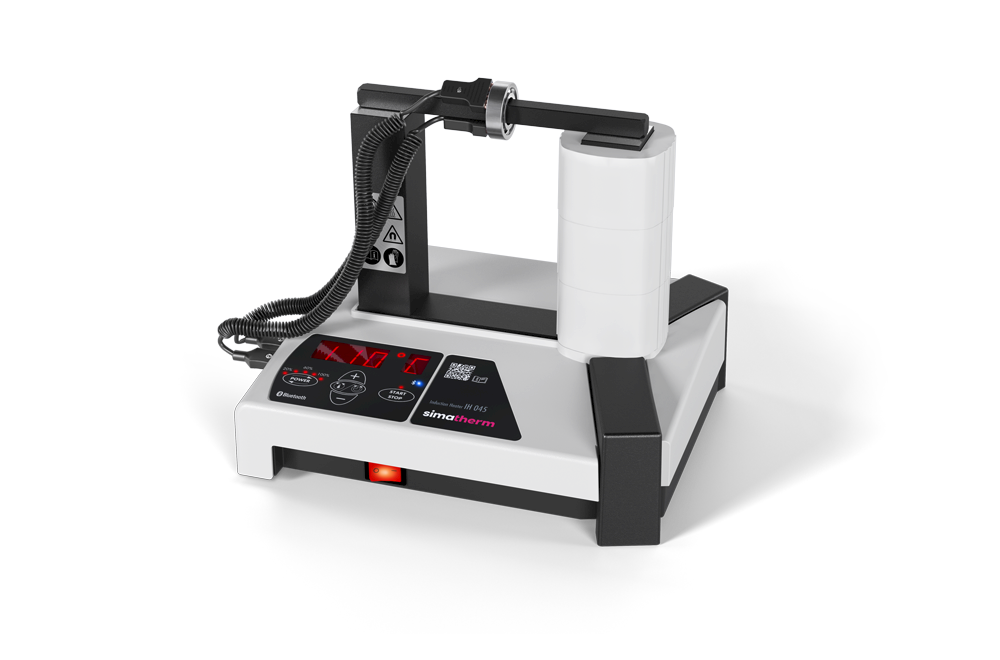

1x Yoke 14×14 for bearings with a bore diameter from 20 mm

1x Yoke 28×28 for bearings with a bore diameter from 40 mm

1x Yoke 42.5×42.5 for bearings with a bore diameter from 60 mm

_Optional:

Second temperature probe needed to use two-sensor technology

Technical data

simatherm IH 045

Designation

Heater for the most common rolling bearings

Voltage V / Hz / power

100 V / 50 – 60 Hz / 1.5 kVA
110 – 120 V / 60 Hz / 1.8 kVA
220 – 240 V / 50 – 60 Hz / 2.1 kVA

Workpiece

Maximum weight 45 kg
Bore diameter From 20 mm inner diameter to 310 mm outer diameter

Temperature control

Range 0 – 180°C
Magnetic probe Type K
Accuracy (electronic) ± 3°C

Time control

Range 0 – 60 minutes
Accuracy ± 0.01 seconds

Maximum temperature (approx.)

180 °C

Thermometer mode

yes

Two-sensor technology

yes

Bearing temperature mode

yes

Power level

8 levels / 10-20-30-40-50-60-80-100%

Suitable for heating sealed bearings

yes

Suitable for heating pre-greased bearings

yes

Suitability for precision bearings

yes

Automatic demagnetization / residual magnetism

yes / < 2A/cm

Thermal overload protection

yes

Maximum magnetic flux

1.5 T

Control panel

Keyboard wtih LED-display or remote control via app

Size of the operating area (WxH)

114 x 160 mm

Coil diameter

89 mm

Measurements (LxWxH)

320 x 267 x 293 mm

Overall weight including yokes

17 kg

Number of standard yokes

Standard yokes

42.5 x 42.5 x 219 mm for bearings with a bore diameter of at least 60 mm
28 x 28 x 219 mm for bearings with a bore diameter of at least 40 mm
14 x 14 x 219 mm for bearings with a bore diameter of at least 20 mm
