The lightest portable induction heater in the world
The lightest portable induction heater in the world
The lightweight portable device with excellent performance

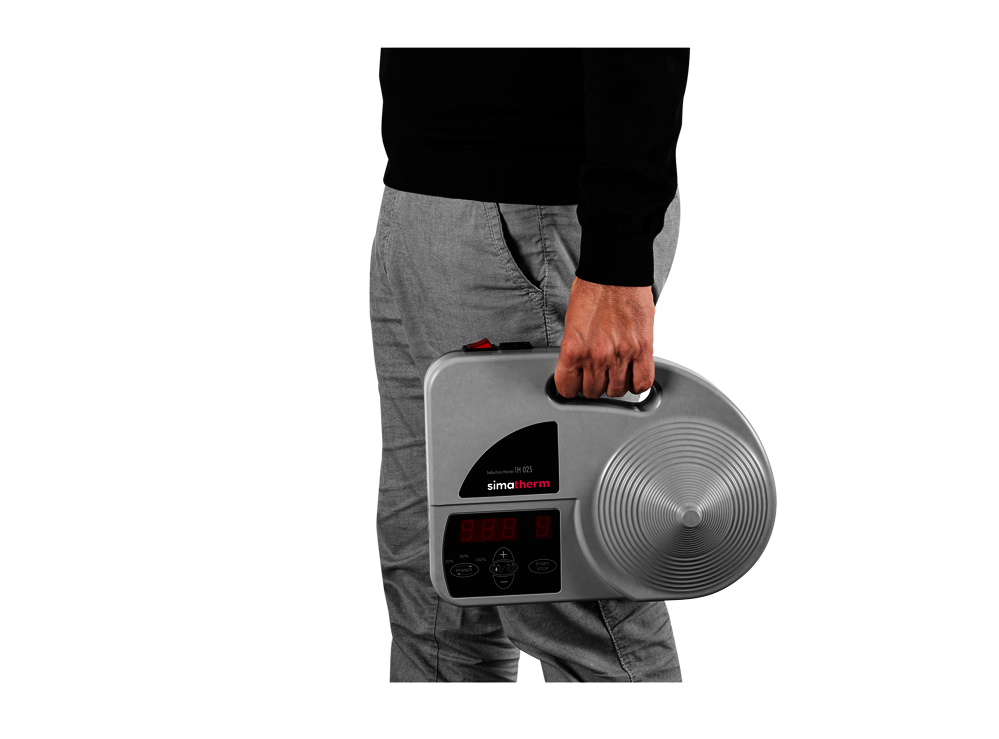

With a weight of only 3.5 kg, the simatherm IH 025 VOLCANO is the lightest portable induction heater in the world. The patented technology enables outstanding heating performance from an extremely light structure. You can use it to heat rolling bearings with an inner diameter as small as 20 mm up to on outer diameter of 160 mm and a weight of up to 10 kg.

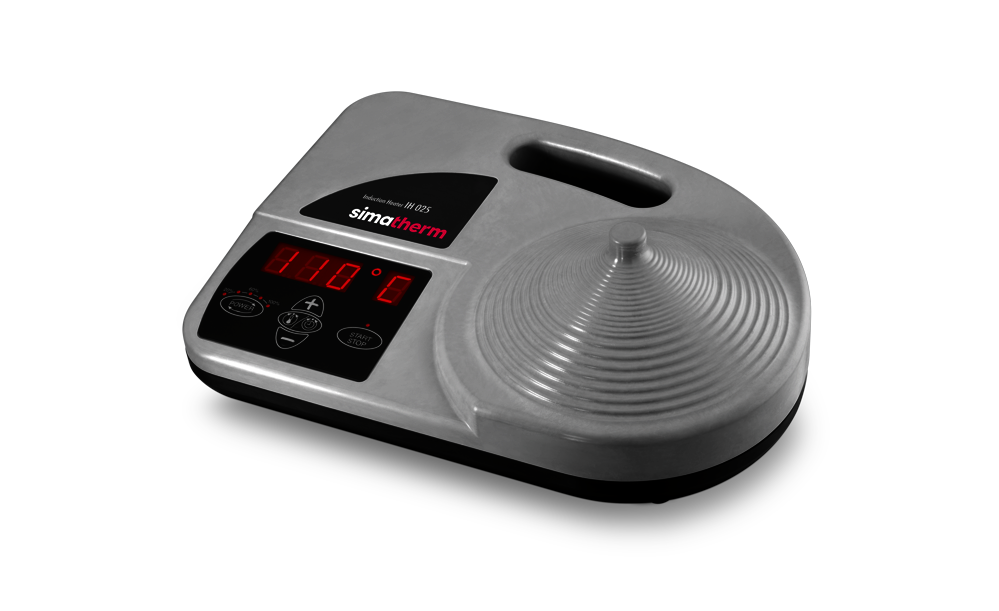

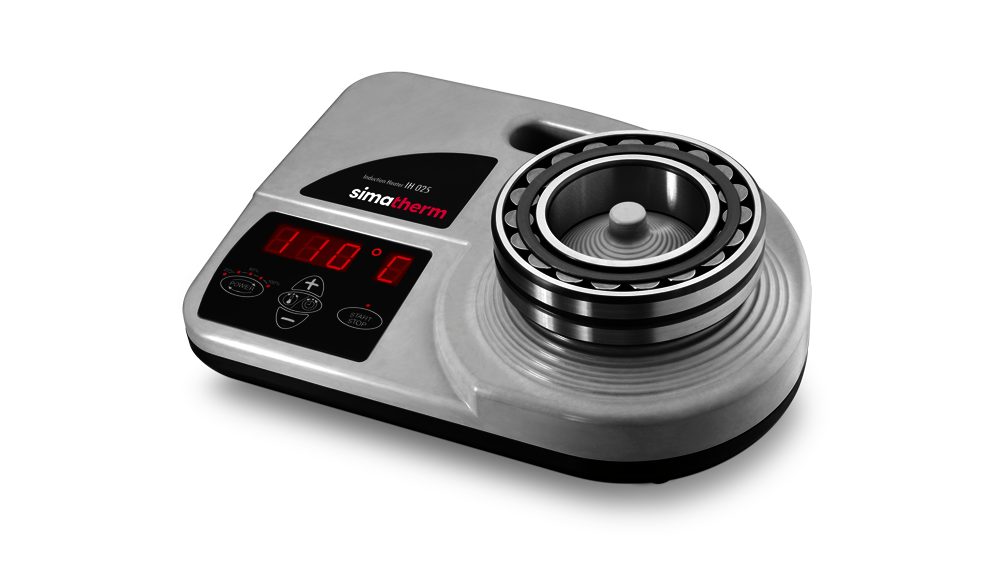

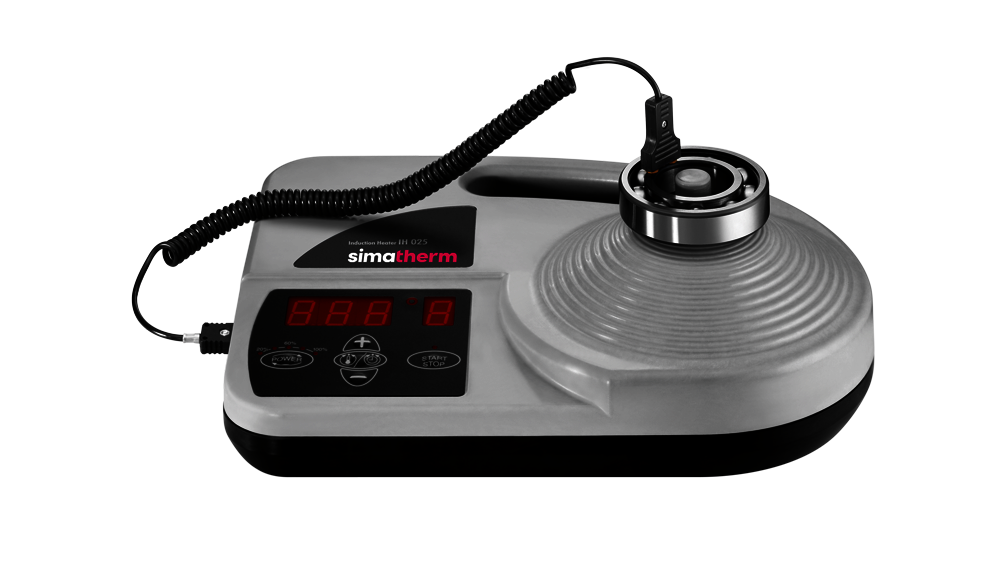

Product images

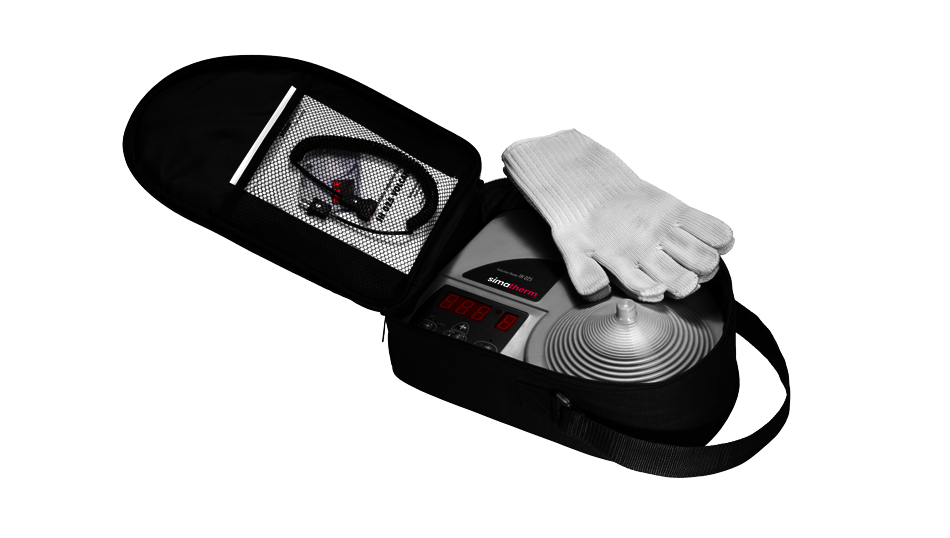

Scope of delivery
Technical data
simatherm IH 025 VOLCANO
Designation
Heaters for small workpieces
Voltage V / Hz / power
220 – 240 V / 50 – 60 Hz / 1.5 kVA
110 – 120 V / 50 – 60 Hz / 1.15 kVA
100 V / 50 – 60 Hz / 1.0 kVA
Workpiece
Maximum weight 10 kg
Bore diameter From 20 mm inner diameter to 160 mm outer diameter
Temperature control
Range 20 – 180°C (68–356°F)
Magnetic probe yes, type K
Accuracy (electronic) ± 3°C to 110°C (± 6°F to 230°F)
Time control
Range 0 – 10 minutes, in steps of 0.1 minutes
Maximum temperature (approx.)
180°C (356°F)
Thermometer mode
yes
Bearing temperature mode
yes
Power reduction
8 levels/ 10-20-30-40-50-60-80-100% (at each level, the performance can be additionally halved)
Automatic demagnetization / residual magnetism
yes / < 2A/cm
Suitable for heating sealed bearings
yes
Suitable for heating pre-greased bearings
yes
Suitability for precision bearings
yes
Error guide codes
yes
Thermal overload protection
yes
Control panel
Keyboard with LED-display
Dimensions (LxWxH)
340 x 250 x 64 mm (over the cone 121 mm)
Overall weight
3.5 kg
Housing material
plastic
Cooling fan
yes
Industry target groups and applications
Fabrication and assembly
General operations maintenance
Typical components which can be heated with the VOLCANO
Materials which can be heated well

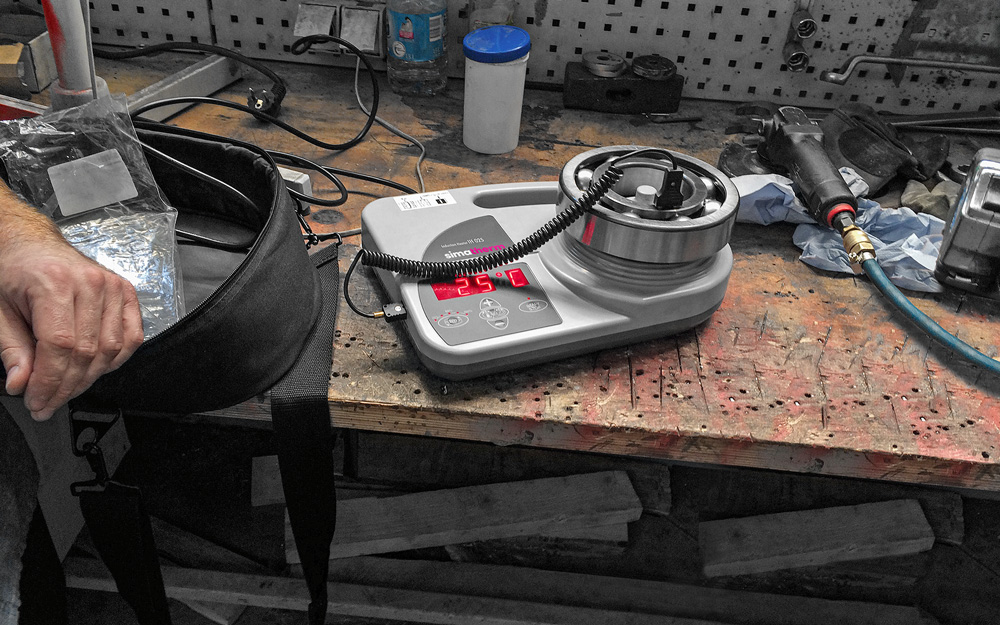

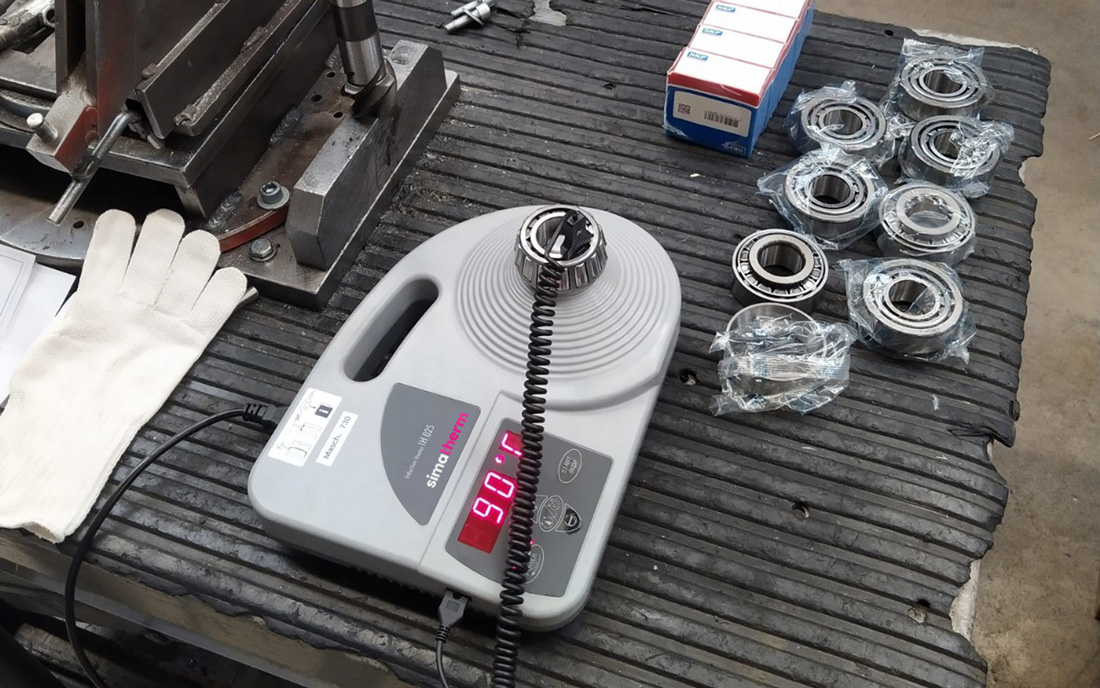

Application images
